Timesheet solution for SharePoint 2010 - Part 3 Installation

Overview:  Download the visual studio 2010 solution.  This contains the code to implement the timesheet application within SharePoint 2010.  The instructions give step by step actions to get the full timesheet application working.

Related posts in this series:
Part 1 - Design & data storage
Part 2 - Building the UI
Part 3 - Installation Steps  (This blog post)
Part 4 - Final Part

Simple Instructions for Timesheet deployment
==================================
You require a web application that contains a site definition, I used a new web application (http://intranet.dev/) with a Publishing Site as the site template for the root site collection.
1. Download PaulB-Timesheet.wsp (save it to the server/local machine, I put PaulB-Timesheet.wsp on the e drive for this post)
2. Open Powershell with SharePoint commands:

3. Install the wsp and activate the feature using Powershell (PS) as shown below (text version of the PS commands)

4. Check the feature has been installed correctly on your site
5. Create a new database and popluate it with tables, download the SQL script.

6. Ensure the Timesheet database is created and ensure an account has permissions to access the table for read/write opterations.

7. Edit the web.config files on each Web Front End SP2010 Server (this should be changed to a feature receiver).  The connection string below uses windows trusted and will pass through each users Windows identity, it will generally be easier to user a dedicated connection string account as it saves on SQL Server permions being required for each user.

To complete your setup you need to configure your timesheet application per part 4 - Seed data & page creation.

Summary:
This will be sufficient for most standard requirments however, it is preferable to implement logging to the ULS and your own logging mechanism if it exists.

The areas I would customise on a SharePoint custom deployment would be:

1. Assemly and wsp solution naming;
2. Add logging to error handling;
3. Rename lables;
4. Potentially add custom fields or logic to the application to meet specific business requirements.

Instructions for Timesheet deployment using Visual Studio 2010 (Advanced option)

===============================================

Download the Visual Studio 2010 project:
PaulBeck.Timesheet.zip (version 1 - 820 KB), unzip the files and place on you development machine.

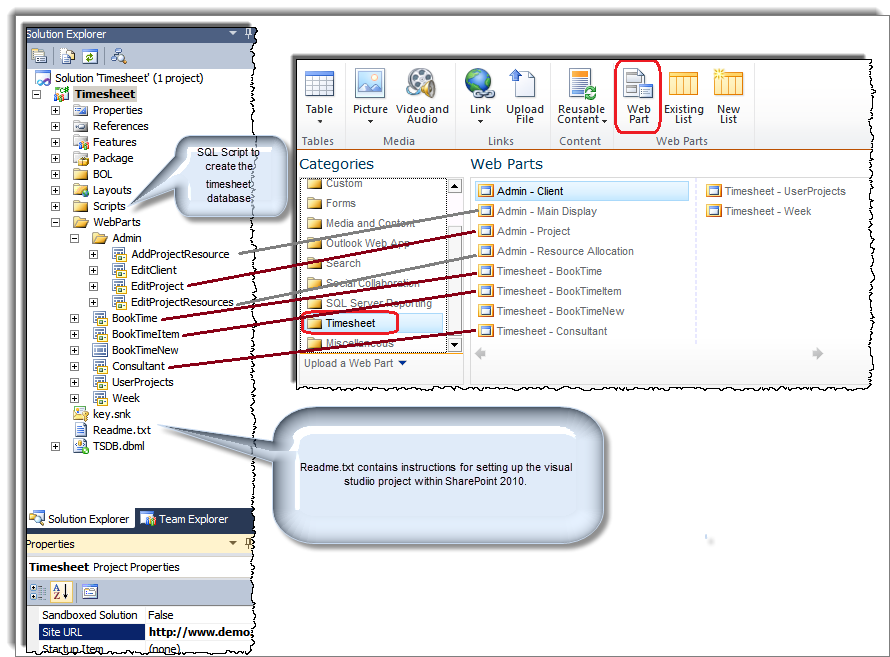

1.> Build and deploy solution to SharePoint farm.  The Visual Studio 2010 project has the following structure.

2.> Run the Script\timesheet-script.sql file in a SQL instance (Creates the db).
3.> Change the web.config to contain the app setting connection info for timesheets.

Configure your Timesheet Application
4.> Add the "Timesheet - Consultant", "Week", "Timesheet - UserProjects" & "Timesheet - BookTime" web parts to a new page.
5.> Connect "Timesheet - Consultant" to "Timesheet - Week" & "Timesheet - UserProjects", then connect "Timesheet - Week" to "Timesheet - BookTime" web part.
6.> Create another page called "Timesheet Add or Edit" i.e. "Timesheet-Add-or-Edit.aspx" (set in the web.config) and add the "Timesheet - BookTimeItem" web part to the page.
7.> Add the Admin screens by:
7.1.> Create a new page named "Timesheet Admin Main", add the following web part to the page "Admin Main".
7.2.> Create a new page named "Timesheet Admin Client", add the web part "Admin - Client" to the page.
7.3.> Create a new page named "Timesheet Admin Project", add the web part "Admin - Project" to the page.
7.4.> Create a new page named "Timesheet Admin Project Resources", add the web part "Admin Resource Allocation" to the page.
